Soluxio: solar light post
The fully autonomous solar-powered street light
The Soluxio solar light post is the most advanced and climate-friendly solution in areas without a power grid or other lighting infrastructure. By using vertically integrated solar modules and leading solar technology, the Soluxio light post provides light wherever you need it. Forget invasive trenching and running costly wire, because the Soluxio works completely off-grid and does not need to connect to the power grid.
Besides being fully self-sufficient, the Soluxio light post offers many more benefits. For example, the Soluxio Solar Post is fixture independent, meaning it is compatible with any luminaire.

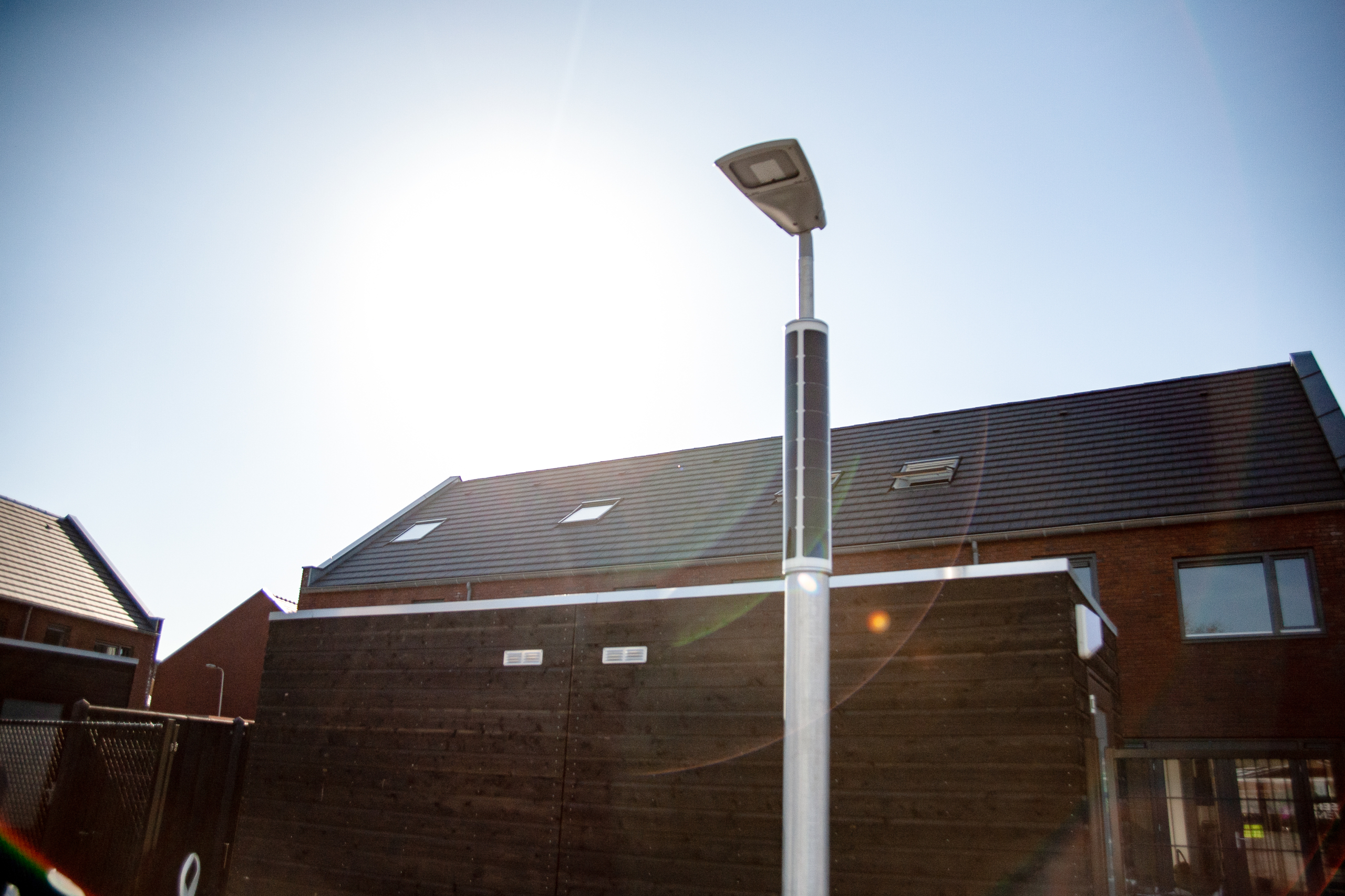

Also you can add 2 light fixtures on one Soluxio light post, like for example at this shopping mall parking lot. In case of wildlife and nocturnal animals present, you may want to use specific turtle-friendly lighting. Check out the Soluxio solar wildlife-friendly lighting edition.
In addition to selecting your own lighting, you also have the freedom to pick and choose other key elements, such as the column material, number of solar modules and column finish. With this in mind, you can configure a solar light pole which meets the needs of your location and application. Read more about creating your own Soluxio below.
Benefits and features of the solar technology
All things considered, the Soluxio solar light post is more than just solar-powered lighting. Due to the clever solar technology it is, for example, also deployable as a remote WiFi hotspot or as a solar radar speed sign.
Learn more about all the benefits and features here or make an inquiry below.
Product Specifications |
|
|---|---|
| Product name | Soluxio Solar Pole |
| Mounting height | 4 m – 10 m |
| Foundation type | 4-Bolt Base / Directly Buried |
| Operating temperature | -20 to 60 °C |
Column |
|
| Column material | Marine-grade aluminum EN AW 6063-T6 (other materials available on request) |
| Finish | Powder coating or anodizing (black, other colors on request) |
| Hand hole | 600 × 100 mm |
| Locking bolts | Triangular (default), security (optional) |
Soluxio Solar Module |
|
| Solar technology | Monocrystalline silicon solar cells |
| Amount of solar modules | Variable from 1 (SOL1) up to 4 (SOL4) |
| Cell efficiency | > 24% |
| Module power | > 110 Wp |
| Total system power | 110 – 440 Wp |
| Number of cells per module | 32 pcs |
| Number of strings per module | 4 strings |
| MPPT topology | Every string individually optimized for every individual module |
| Number of MPPT channels | 4 per solar module |
| Front sheet material | Borosilicate glass |
| Solar module color | Black or white |
| Dimensions per module | Ø 200 × 1110 mm |
| Weight per module | 7 kg |
Soluxio Control Unit |
|
| Soluxio Control Unit | Containing control electronics & battery |
| Location | In pole, on C-rail |
| Material | Marine-grade aluminum EN AW 6060-T66 |
| Finishing | Anodized |
| Ingress protection | IP67 |
| Enclosure mounting | Optional padlock can be provided for the inside |
| Weight | 850 Wh ≈ 8 kg | 1275 Wh ≈ 10 kg |
Soluxio Battery |
|
|---|---|
| Battery technology | Lithium (NMC) |
| Battery capacity | 850 Wh or 1275 Wh |
| Battery voltage | 14.9 Vdc (850 Wh) 22.3 Vdc (1275 Wh) |
| Battery SoC window | 10 ~ 95% |
| Service life | ∼ 10 years |
| Operating temperature | -20 to 60 °C |
| Enclosure | Integrated in Soluxio Control Unit enclosure |
Soluxio Control Electronics |
|
| Battery Management System (BMS) | Integrated 6-cell monitoring and balancing |
| Control Electronics temperature and humidity monitoring | Integrated temperature sensor on-board lithium pack Integrated temperature sensor on-board electronics Integrated humidity sensor on-board electronics |
| LED driver type | Integrated high-efficiency (>97%) DC LED driver |
| max. drive voltage | 63 Vdc |
| max. drive current | 1850 mA |
| max. power | 80 W |
| SIM card | Global M2M eSIM (inc.), NanoSIM (opt.) |
| Global Navigation Satellite System (GNSS) | GPS, BeiDou, Galileo, GLONASS, QZSS |
| Over-the-Cable updateable | Yes (USB-programming device optional) |
| Over-the-Air updateable | Yes [1] |
| Remote monitoring and configuring | Optional [2] |
| Time and date | Astronomical clock |
| Lighting scheme | Automatic adaption to sunset and sunrise |
| Dimming scheme | HelioSync™ Algorithmic Dimming |
| Smart city ready | Yes |
| Enclosure | Integrated in Soluxio Control Unit enclosure |
| Service plan [2] | 5 years included |
Lighting |
|
| Light fixture | LUX-A |
| Lighting scheme | Automatic adaption to sunset and sunrise |
| Light fixture power | from 5 W to max. 80 W |
| Max. efficacy | 192 lm/W |
| Color temperature | 3000K, 4000K, NatureGuard™ |
Simply add features like WiFi, USB, CCTV or sensors
Light fixture independent
Easy asset management due to remote connectivity
Customise your own Soluxio solar light post
The Soluxio’s modular design allows you to configure the light pole to your specific application and location. By optimizing the key system parameters and by choosing the design options you prefer, the Soluxio light post becomes the ideal solar solution for anyone, anywhere.
